Switch actuator
Current Position：Home > Product > DALI Series > Switch actuator >
| Type | Name | Feature | Demension:H*W*D | Order code |

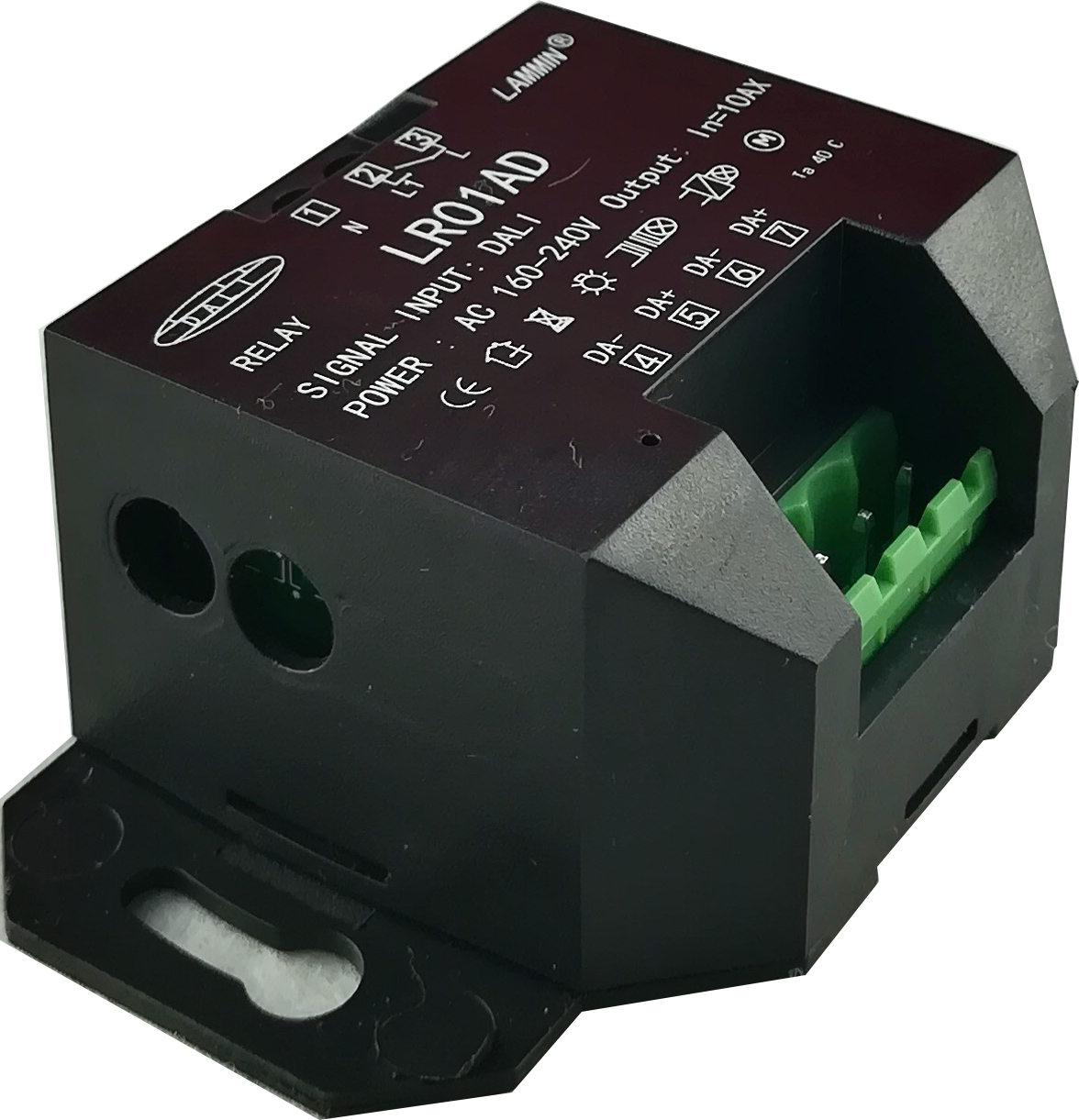

| LR01AD | 1 channel 10A DALI on-off module（AC power） | AC power/magnetic latching relay /bottom box mounting/plug terminal | 48*35*50 | 2.10.01.000 |
Profile
●High-power switch actuator can achieve high power switching control through DALI signal input
●1 channel with single loop max output power reach to 10A
●High-power magnetic latching relays
Features
●Applicable for standard DALI signal and other inductive loads
●High-power magnetic latching relays, no power consumption
●Power consumption, anti-surge current>170A
●Long life cycle, small size and DIN-rail installation,easy to install
●Relay manual operation is optional
Technical Parameters
Model No | LR01AD |
Brand | LAMMIN |
Input Signal | DALI signal |
Input Voltage | AC 220V |
Frequency Range | 50/60Hz |
Max Load Current | 10A/CH*1 |
Max Output | 10A 250VAC,2000W, 3*104 (fluorescent lamp)5HP 250VAC 3*104( motor load) |
Max Load | 2000W |
Certification | CE |
Working Temp | -20℃~+50℃ |
Warranty | 3 years |
Size(L*W*H)MM | 72*52*29 |
Installation | 86 bottom box Φ3 bolts |
