Switch actuator
Current Position：Home > Product > DALI Series > Switch actuator >
| Type | Name | Feature | Demension:H*W*D | Order code |

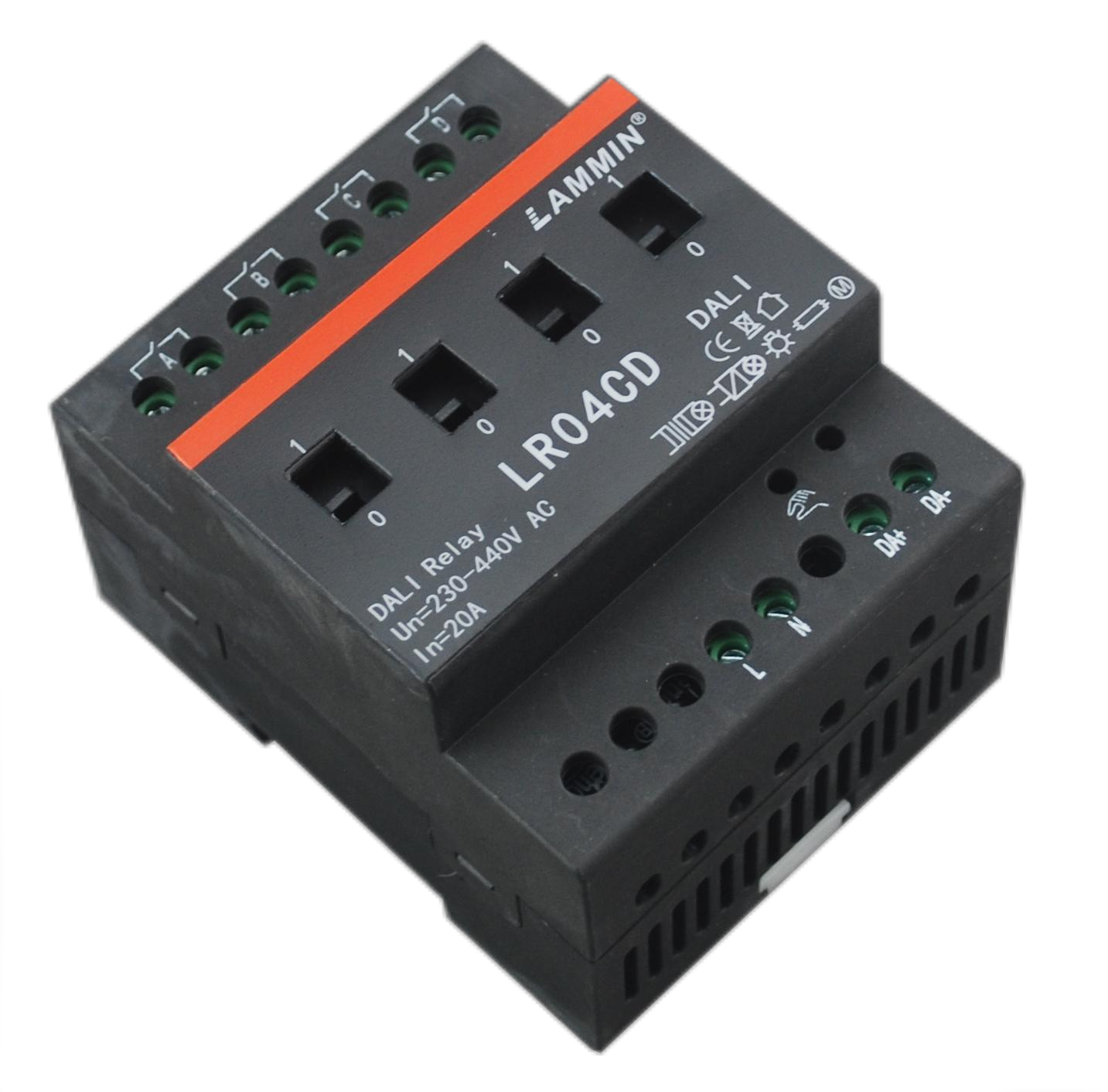

| LR04CD | 4 channel 20A DALI on-off module(AC) | AC power supply/manual emergency lever/magnetic latching relay/Din-rail | 88*72*65 (4） | 2.10.04.000 |
Profile
●High-power switch actuator can achieve high power switching control through DALI signal input
●4 channels with single loop max output power reach to 20A
●High-power magnetic latching relays
Features
●Applicable for standard DALI signal and other inductive loads
●High-power magnetic latching relays, no power consumption
●Power consumption, anti-surge current>170A
●Long life cycle, small size and DIN-rail installation,easy to install
●Relay manual operation is optional
●White or black metal shell
Technical Parameters
Model No | LR04CD | LR06CD | LR08CD | LR12CD |
Brand | LAMMIN | |||
Input Signal | DALI signal | |||
Input Voltage | AC 220V | |||
Frequency Range | 50/60Hz | |||
Max Load Current | 20A/CH*4 | 20A/CH*6 | 20A/CH*8 | 20A/CH*12 |
Max Output | 20A 250VAC,4000W, 3*104 (fluorescent lamp)5HP 250VAC 3*104( motor load) | |||
Min Load | 60W | |||
Certification | CE | |||
WorDing Temp | -20℃~+50℃ | |||
Warranty | 3 years | |||
Size(L*W*H)MM | 72*92*65 | 144*92*65 | 144*92*65 | 216*92*65 |
Installation | 35MM Din-rail | |||
Customization | YES | |||
