Switch actuator
Current Position：Home > Product > DALI Series > Switch actuator >
| Type | Name | Feature | Demension:H*W*D | Order code |

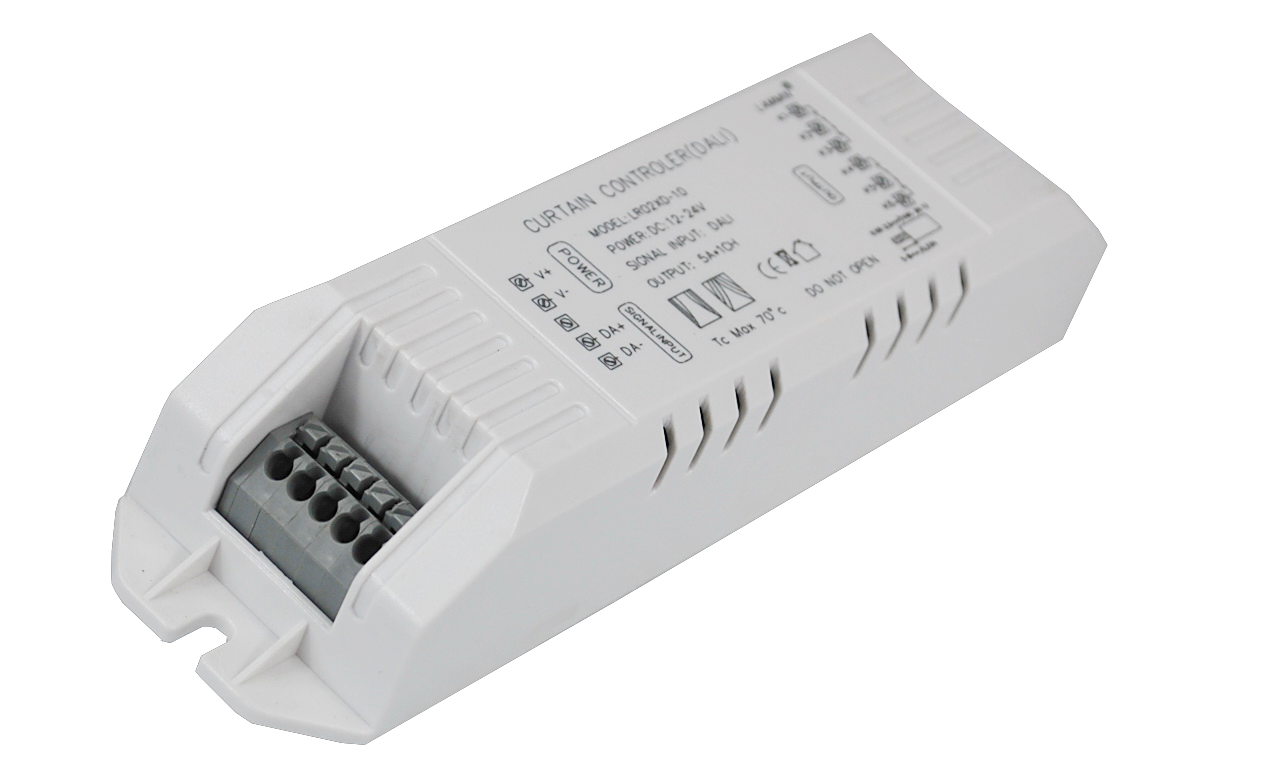

| LR02XD-2C | 2 channel DALI curtain control module | Control two sets of curtain/switch time adjustable/switch with interlock/curtain box mounting | 40*155*30 | 2.10.14.000 |
Profile
●2 channel curtain controller control the forward, reverse and stop of the motor by DALI signals.
●Motor forward and reverse rotation time can be set
●Output current of each channel can reach 5A.
Features
●Applicable for standard DALI signal and other inductive loads
●Wiring regardless of polarity, output with 5A switch
●Relay with status indicator
●Built-in AC - DC power relay, 0 to 220v power supply
Technical Parameters
Model No | LR02XD-1C |
Brand | LAMMIN |
Input Signal | DALI signal |
Input Voltage | DC12V/24V |
Frequency Range | 50/60Hz |
Max Load Current | 5A/CH*1 |
Max Output | 5A 250VAC,1000W, 3*104 (fluorescent lamp)5HP 250VAC 3*104( motor load) |
Max Load | 600W*2 |
Certification | CE |
Working Temp | -20℃~+50℃ |
Warranty | 3 years |
Size(L*W*H)MM | 155*40*30 |
Installation | Φ3 bolts |
