Switch actuator
Current Position：Home > Product > KNX Series > Switch actuator >
| Type | Name | Feature | Demension:H*W*D | Order code |

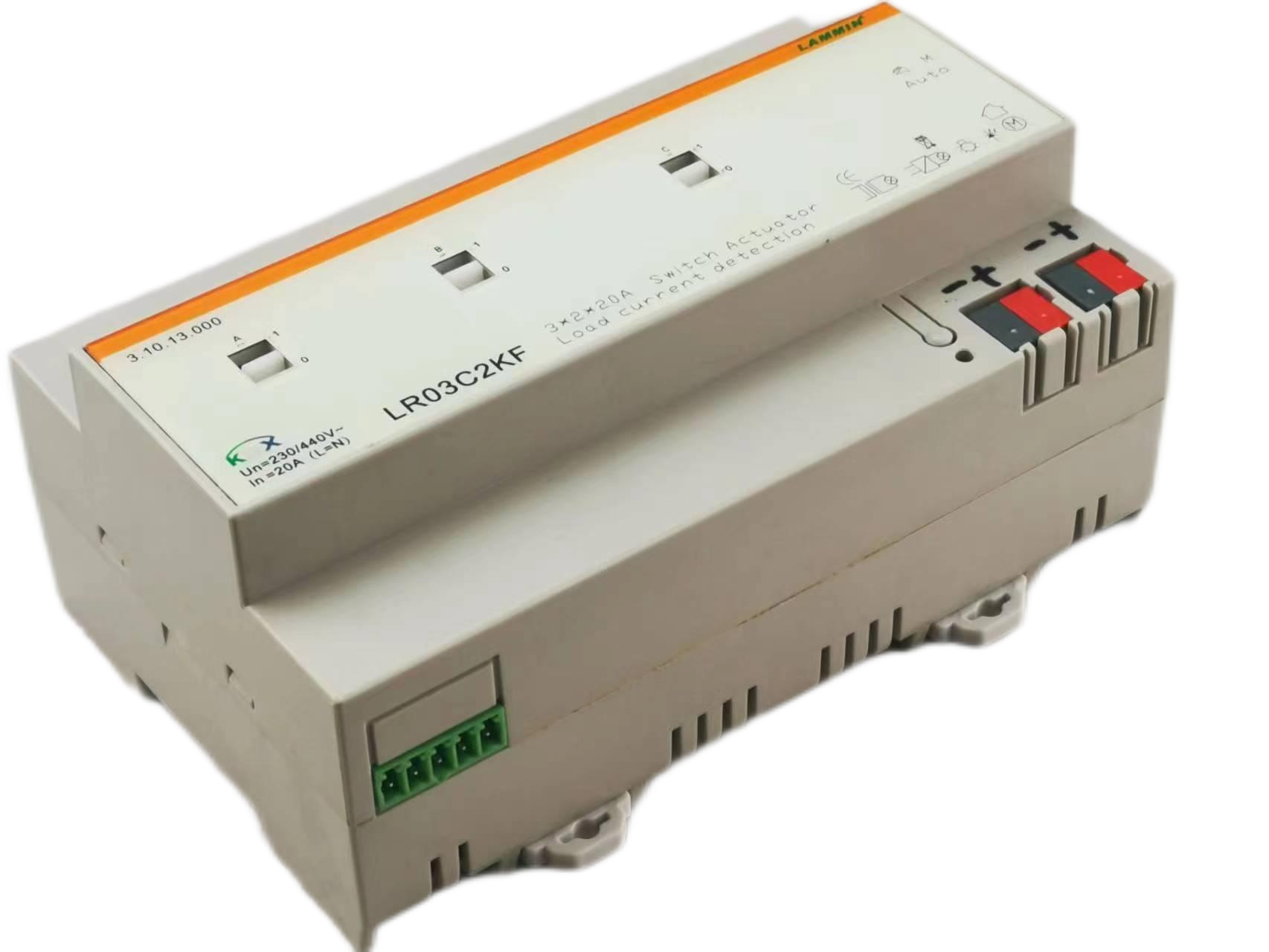

| LR03C2K | 3*2*20A KNX switch actuator | 3 groups of 2 channels/manual emergency lever/magnetic hold relay/current detection, manual automatic conversion |
90*144*65 (8) |
3.10.13.000 |
Profile
●High-power switch actuator can achieve high-power 3 groups of 2 channel on/off control through KNX signal.
●The output power of a single group of loops can reach 20A
●High-power magnetic latching relays
●Two dry contact input signals and one 24V input signals
Features
●Applicable for standard KNX signal and other inductive loads
●High-power magnetic latching relays, no power consumption
●3 groups of on/off can control the fire zero line at the same time
●Input port can carry out lighting control, curtain control, data transmission,
●Power consumption, anti-surge current>170A
●Long life cycle, small size and DIN-rail installation,easy to install
●Relay manual operation is optional
Technical Parameters
|
Model No |
LR03C2K |
|
Brand |
LAMMIN |
|
Input Signal |
KNX signal |
|
Input Voltage Range |
KNX/EIB DC21-30V |
|
Input Port |
2* dry contact input signals and 1* 24V input signals |
|
Frequency Range |
50/60Hz |
|
KNX Current |
15mA |
|
Max Load Current |
3*2*20A |
|
Max Output |
20A 250VAC,4000W, 3*104 (fluorescent lamp)5HP 250VAC 3*104( motor load) |
|
Min Load |
60W |
|
Certification |
CE |
|
Working Temp |
-20℃~+50℃ |
|
Warranty |
3 years |
|
Size(L*W*H)MM |
144*90*65 |
|
Installation |
35MM Din-rail |
