| DALI actuator |
| # | Type | Name | Feature | Demension:H*W*D | Photo |

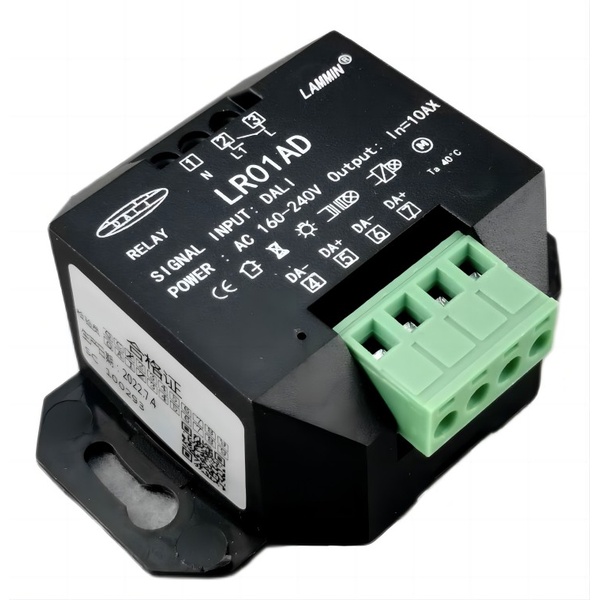

| 1 | LR01AD | 1 channel 10A DALI actuator module（AC power） | AC power/magnetic latching relay
/bottom box mounting/plug terminal | 48*35*50 |  |

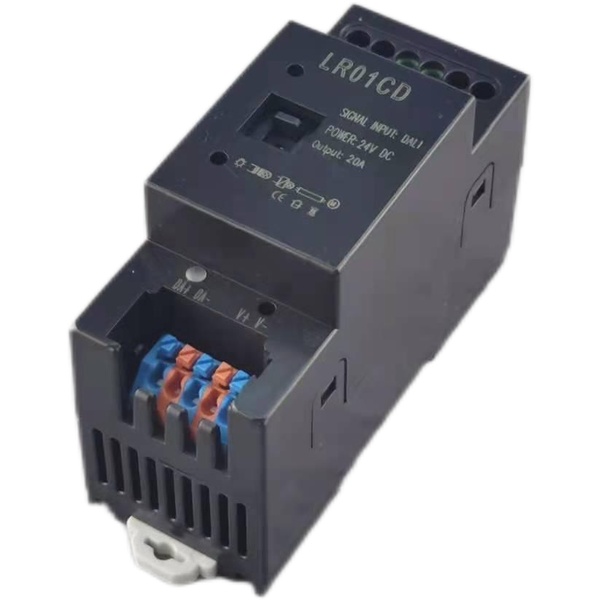

| 2 | LR01CD | 1 channel 20A DALI actuator module （AC power） | AC power supply/manual emergency lever/magnetic latching relay/Din-rail | 88*36*65
(2） |  |
| 3 | LR02YD | 2 channel 5A DALI actuator module(BUS power） | Bus power supply/dry contact controllable/2 magnetic latching relays/86 bottom box | 52*52*22 |  |

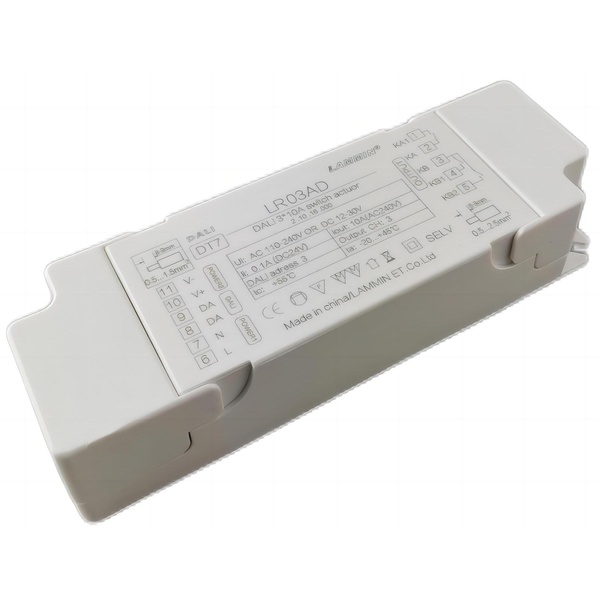

| 4 | LR03AD | 3 channel 10A DALI actuator module（AC or DC power） | AC or DC power supply/manual emergency lever/magnetic latching relay/Din-rail | 135*45*28 |  |
| 5 | LR04AD | 4 channel 10A DALI actuator module（AC power） | AC power supply / independent output terminal / magnetic latching relay / rail mounting / low noise / surge resistance | 88*72*65
(4） |  |

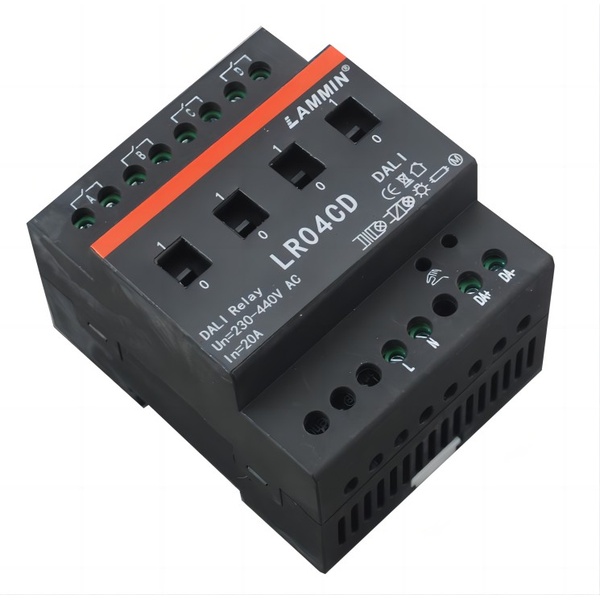

| 6 | LR04CD | 4 channel 20A DALI actuator module(AC power) | AC power supply/manual emergency lever/magnetic latching relay/Din-rail | 88*72*65
(4） |  |
| 7 | LR04CDS | 4 channel 20A DALI actuator module
（DC power） | DC power supply/manual emergency lever/magnetic latching relay/MODBUS current test | 90*108*64
（5） |  |

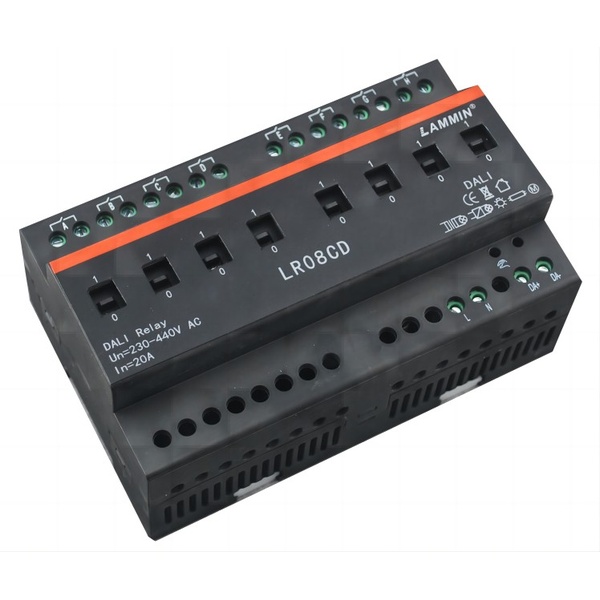

| 8 | LR08CD | 8 channel 20A DALI actuator module(AC) | Output independent terminal/manual emergency lever/magnetic latching relay/Din-rail | 90*144*65
(8） |  |
| 9 | LR08CDS | 8 channel 20A DALI actuator module with current testing | DC power supply/manual emergency lever/magnetic latching relay/MODBUS current test | 90*152*65
(9） |  |

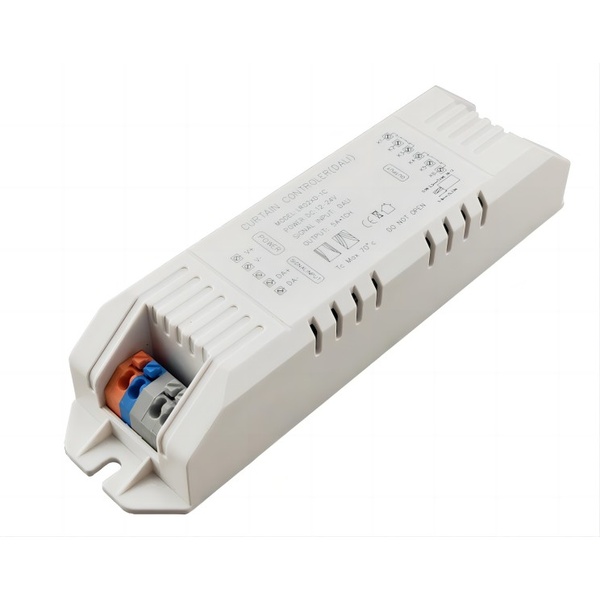

| 10 | LR02XD-2C | 2 channel 3A DALI curtain control module(DC Power) | Controllable two sets of curtains/adjustable switching time, switch with interlock/external DC power supply | 40*155*30 |  |
| 11 | LR02WD-2C | 2 channel DALI curtain control module(Bus power) | Controllable two sets of curtains/optical coupling on/off/bus power supply/curtain box installation | 50*55*12 |  |
