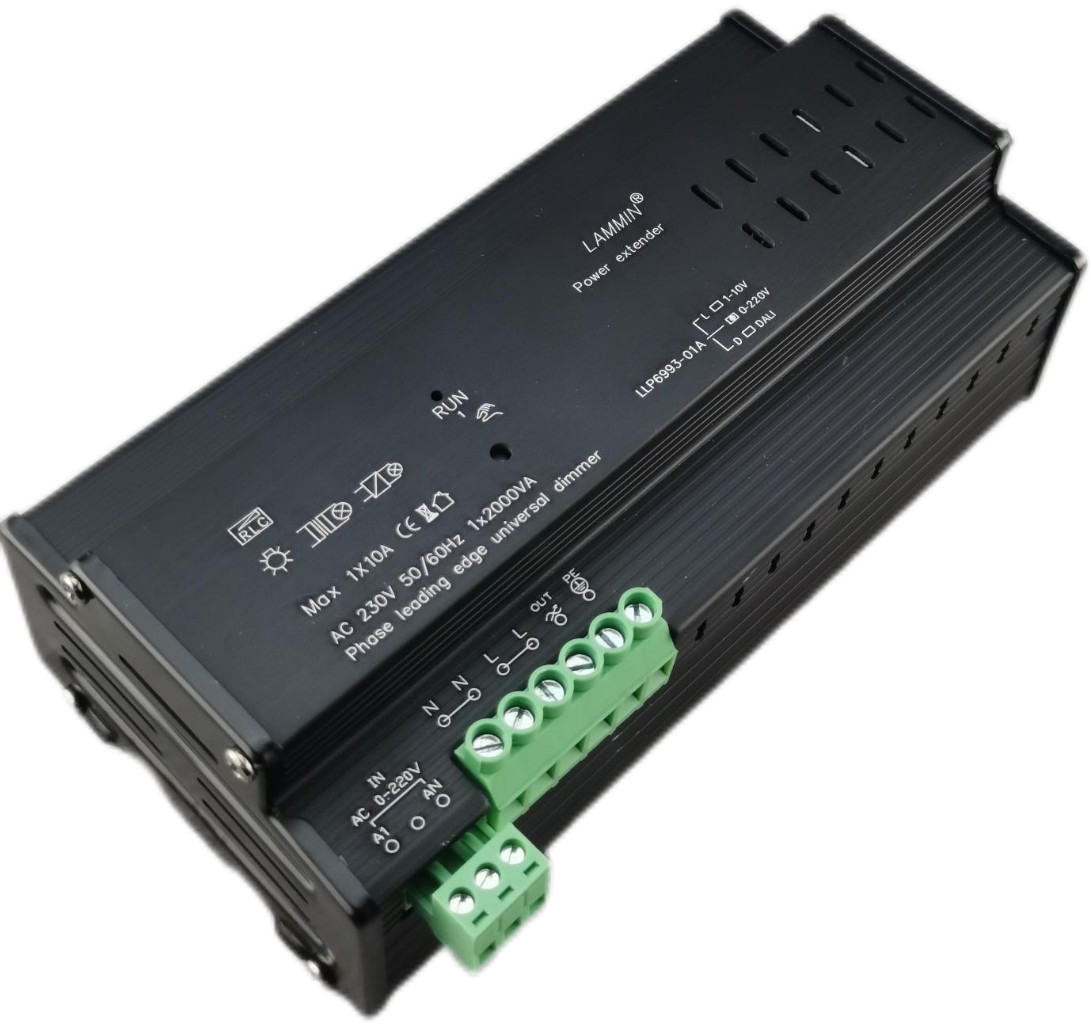

10A(2KW) dimmer
Current Position：Home > Product > Phase Adaptive Dimmer > 10A(2KW) dimmer >
| Type | Name | Feature | Demension:H*W*D | Order code |
| L6993-01A | single 10A 0-220V dimmer | Manual dimming button/flickerless/relay power off/multiple temperature protection | 88*180*65 (10） | 1.10.01.000 |
Profile
●Dimming power amplifier adopt leading edge phase dimming，input 0-220V signal and convert into high power 0-220V TRIAC dimming.
●Applicable for incandescent lamps, dimmable LED lamps, and low-voltage halogen lamps with electronic transformer.
●Each channel output power up to 2000W.
Features
●Manual dimming button/plug signal terminal/1024 level dimming/multiple temperature protection/flickerless
●Signal input buffer design, smooth dimming, timing>=220us
●Short out protection, overload and over-voltage protection
●Long life cycle, small size and 35mm DIN-rail installation
●Signal input terminal plug design, easy connection
Technical Parameters
Model No | L6993-01A |
Brand | LAMMIN |
Input Signal | 0-220V signal |
Input Voltage | AC 220V |
Output Voltage | AC 0-220V |
Frequency Range | 50/60Hz |
Max Load Current | 10A/CH*1 |
Max Output | 2000W*1 |
Min Load | 40W |
Certification | CE |
Working Temp | -20℃~+50℃ |
Warranty | 3 years |
Size(L*W*H)MM | 216*88*65 |
Installation | 35mm DIN rail |
Customization | YES |
