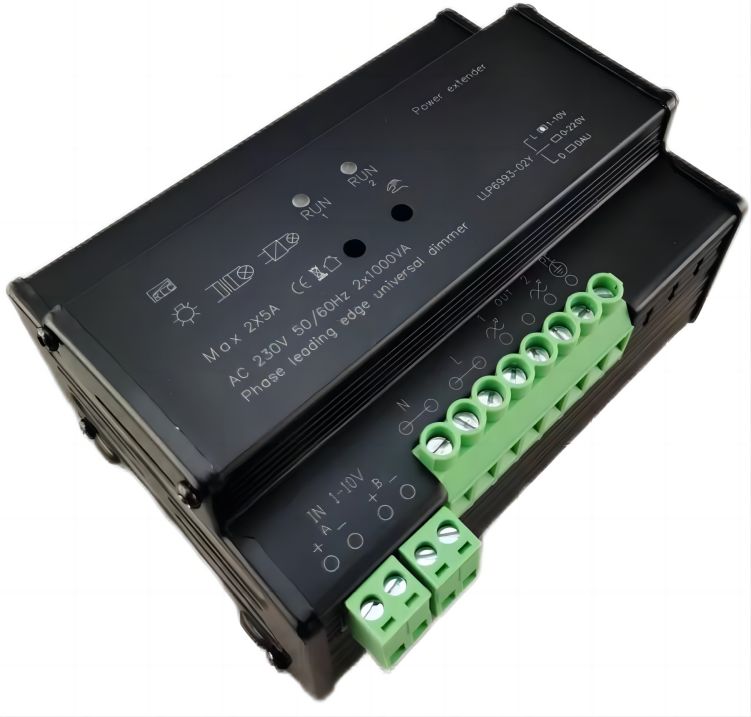

5A(1KW) dimmer
Current Position：Home > Product > Phase Adaptive Dimmer > 5A(1KW) dimmer >
| Type | Name | Feature | Demension:H*W*D | Order code |
| L6993-02Y | 2 channel 5A 0-220V dimmer | Manual dimming button/metal shell heat dissipation/ Multiple temperature protection /flickerless module | 88*126*65 (7） | 1.05.02.000 |
| L6993-02YL | 2 channel 5A 1-10V dimmer | Manual dimming button/metal shell heat dissipation/ Multiple temperature protection /flickerless module | 88*126*65 (7） | 1.05.03.000 |
| L6993-02YD | 2 channel 5A DALI dimmer | Manual dimming button/metal shell heat dissipation/ Multiple temperature protection /flickerless module | 88*126*65 (7） | 2.20.03.000 |
Profile
●Dimming power amplifier adopt leading edge phase dimming，input 0-220V signal and convert into high power 0-220V TRIAC dimming.
●Applicable for incandescent lamps, dimmable LED lamps, and low-voltage halogen lamps with electronic transformer.
●Each channel output power up to 1000W.
Features
●Manual dimming button/metal shell heat dissipation/multiple temperature protection
/flickerless module
●Signal input buffer design, smooth dimming, timing>=220us
●Short out protection, overload and over-voltage protection
●Long life cycle, small size and 35mm DIN-rail installation
●Signal input terminal plug design, easy connection
Technical Parameters
Model No | L6993-02Y | L6993-02YL | L6993-02YD |
Brand | LAMMIN | ||
Input Signal | 0-220V signal | 0/1-10V signal | DALI signal |
Input Voltage | AC 220V | ||
Output Voltage | AC 0-220V | ||
Frequency Range | 50/60Hz | ||
Max Load Current | 5A/CH*2 | ||
Max Output | 1000W*2 | ||
Min Load | 40W | ||
Certification | CE UL | ||
Working Temp | -20℃~+50℃ | ||
Warranty | 3 years | ||
Size(L*W*H)MM | 126*88*65 | ||
Installation | 35mm DIN rail | ||
Customization | YES |
