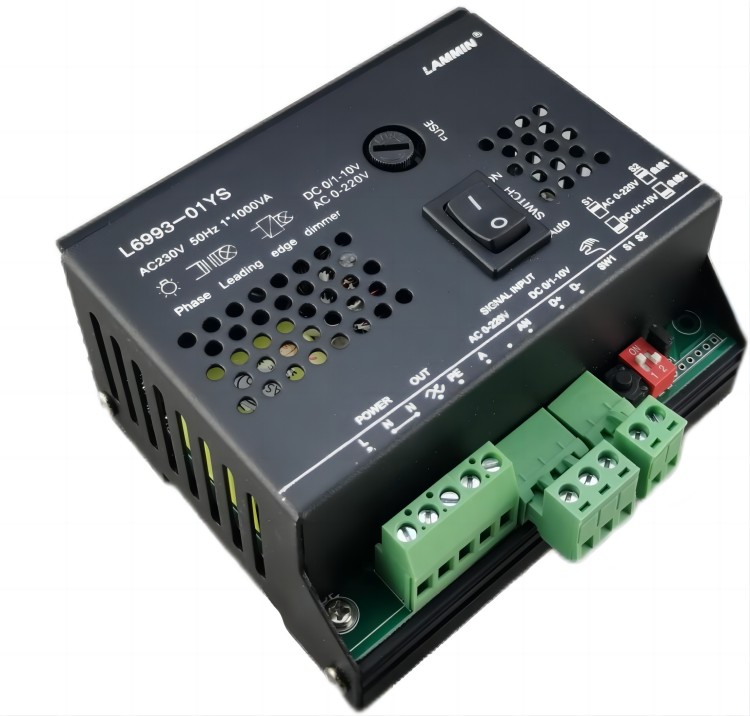

5A(1KW) dimmer
Current Position：Home > Product > Phase Adaptive Dimmer > 5A(1KW) dimmer >
| Type | Name | Feature | Demension:H*W*D | Order code |
| L6993-01YS | single 5A 1-10V or 0-220V dimmer | Dual signal input/multiple dimming curve/Manual on-off switch/replaceable fuse | 92*106*50 (6） | 1.05.01.000 |
Profile
●Dimming power amplifier adopt leading edge phase dimming, input 0-220V AC voltage signal or 0/1-10V low-voltage DC signal, convert into high power 0-220V TRIAC dimming.
●Applicable for incandescent lamps, dimmable LED lamps, and low-voltage halogen lamps with electronic transformer.
●Each channel output power up to 1000W.
Features
●AC 0-220V or 1-10V dimming signal inputs
●Dual signal input/multiple dimming curve/Manual switch actuator/replaceable fuse
●Short out protection, overload and over-voltage protection
●Signal input buffer design, smooth dimming, timing>=220us,
●Long life cycle, small size and 35mm DIN-rail installation
●Signal input terminal plug design, easy connection
Technical Parameters
Model No | L6993-01YS |
Brand | LAMMIN |
Input Signal | AC 0-220V or DC 1-10V |
Input Voltage | AC 220V |
Output Voltage | AC 100-240V |
Frequency Range | 50/60Hz |
Max Load Current | 5A/CH*1 |
Max Output | 1000W |
Min Load | 40W |
Certification | CE |
Working Temp | -20℃~+50℃ |
Warranty | 3 years |
Size(L*W*H)MM | 106*92*50 |
Installation | 35mm DIN rail |
Customization | YES |
