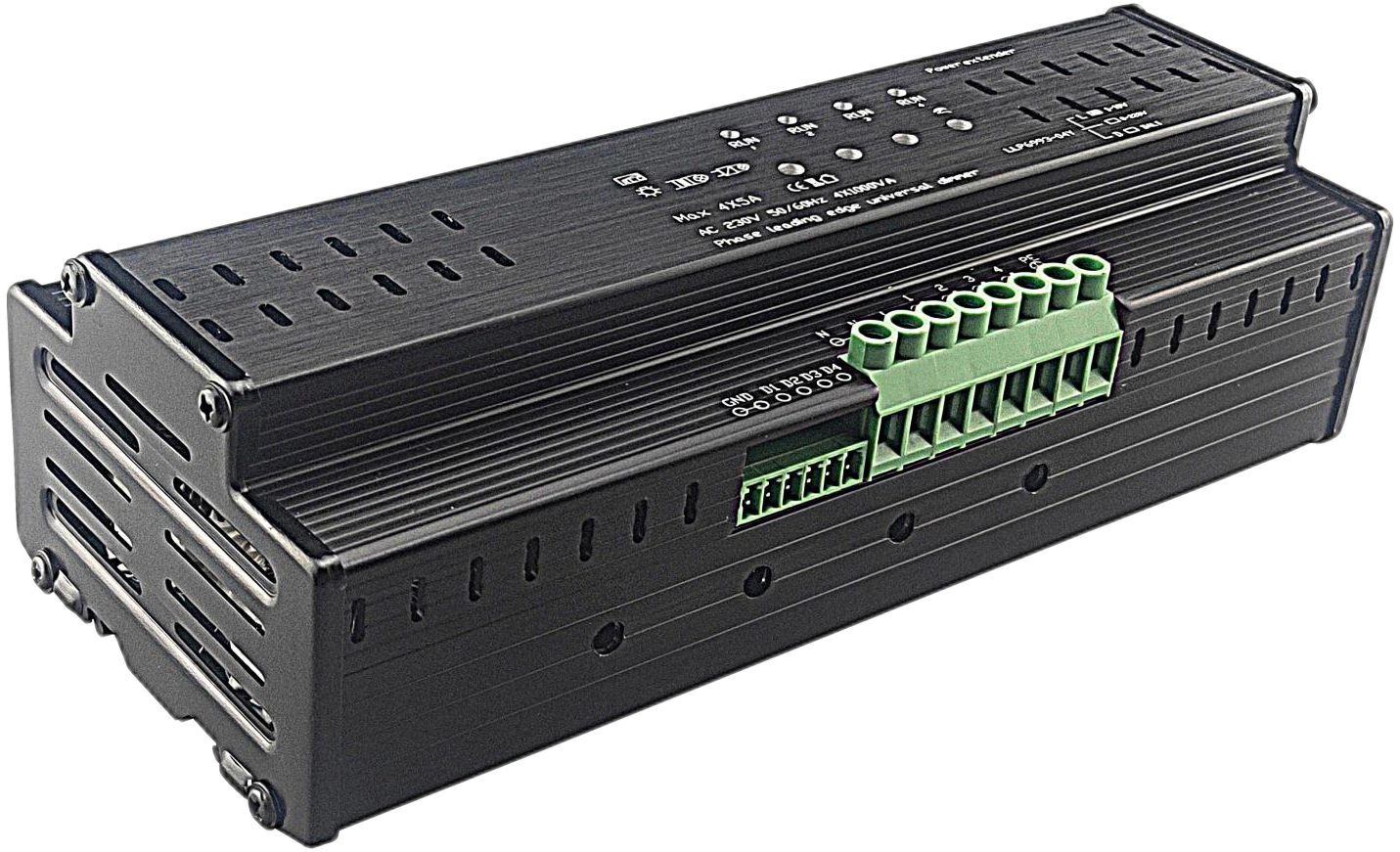

5A(1KW) dimmer
Current Position：Home > Product > Phase Adaptive Dimmer > 5A(1KW) dimmer >
| Type | Name | Feature | Demension:H*W*D | Order code |
| L6993-04YL | 4 channel 5A 1-10V dimmer | Manual dimming button/metal shell heat dissipation/ Multiple temperature protection /flickerless module | 88*216*65 (12） | 1.05.05.000 |
| L6993-04YD | 4 channel 5A DALI dimmer | Manual dimming button/Plug signal terminal / Multiple temperature protection/zero terminal | 88*216*65 (12） | 2.20.05.000 |
Profile
●Dimming power amplifier adopt leading edge phase dimming，input DALI signal and convert into high power 0-220V TRIAC dimming.
●Applicable for incandescent lamps, dimmable LED lamps, and low-voltage halogen lamps with electronic transformer.
●Each channel output power up to 1000W.
Features
●Manual dimming button/metal shell heat dissipation/multiple temperature protection
/flickerless module
● Signal input buffer design, smooth dimming, timing>=220us
●Short out protection, overload and over-voltage protection
●Long life cycle, small size and 35mm DIN-rail installation
●Signal input terminal plug design, easy connection
Technical Parameters
Model No | L6993-04YL | L6993-04YD |
Brand | LAMMIN | |
Input Signal | 0/1-10V signal | DALI signal |
Input Voltage | AC 220V | |
Output Voltage | AC 0-220V | |
Frequency Range | 50/60Hz | |
Max Load Current | 5A/CH*4 | |
Max Output | 1000W*4 | |
Min Load | 40W | |
Certification | CE UL | |
Working Temp | -20℃~+50℃ | |
Warranty | 3 years | |
Size(L*W*H)MM | 216*88*65 | |
Installation | 35mm DIN rail | |
Customization | YES |
